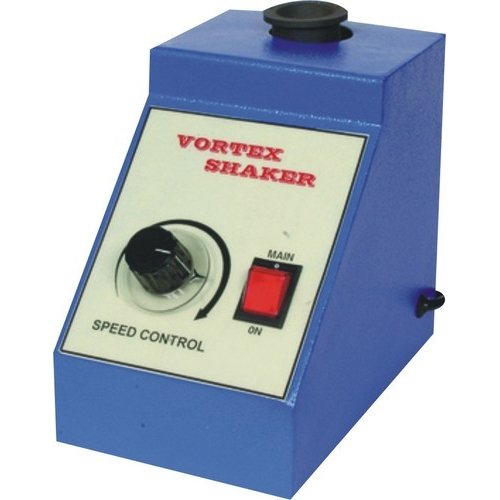

Vortex Mixer
Detailed Specifications: The vortex mixer provides orbital mixing action. The speed range is 500-3000 rpm (variable). The operation modes are touch (momentary) and continuous. The orbit diameter is 4mm. The cup head material is rubber for secure tube gripping. The base is heavy die-cast metal for stability. The motor is a quiet, maintenance-free type. The power supply is 220V/50Hz. The power consumption is approximately 50W. The dimensions are approximately 150mm x 150mm x 100mm. The weight is approximately 3kg. The mixer includes a standard cup head. Optional accessory heads include flat head for microplates, foam head for multiple tubes, and 3-prong head for various tube sizes. The instruction manual is included.
Vortex Mixer. The Vortex Mixer Model MIC-20070 from Micron is a top rated laboratory device for rapid mixing of small liquid volumes in tubes, vials, and microplates. This versatile mixer creates a vortex action that thoroughly mixes samples for reagent preparation, cell resuspension, and analytical testing. The variable speed control allows adjustment from gentle mixing to high-speed vortexing. The unit can be operated in continuous or touch (momentary) mode. For laboratories seeking the best vortex mixer for routine sample mixing, the MIC-20070 is an outstanding choice that combines versatility with reliability.
One of the best features of the MIC-20070 vortex mixer is its variable speed control and dual operation modes. The variable speed control (typically 500-3000 rpm) allows adjustment for different sample types and volumes. The touch mode activates mixing when the tube is pressed onto the cup head, ideal for quick mixing. The continuous mode keeps the mixer running for hands-free operation when processing multiple samples. The heavy die-cast base prevents walking during operation. The rubber cup head accommodates various tube sizes including microcentrifuge tubes, 15ml tubes, and 50ml tubes. The optional accessory heads are available for microplates and multiple tubes. The quiet, maintenance-free motor provides reliable operation. Its speed flexibility, operation modes, and stability make it a top rated vortex mixer for laboratory sample preparation.
Variable Speed Control (500-3000 rpm): Adjustable speed for gentle mixing to high-speed vortexing for any sample type.
Touch and Continuous Operation Modes: Touch mode for quick mixing; continuous mode for hands-free multiple sample processing.
Heavy Die-Cast Metal Base: Prevents walking during operation for stability and safety.
Rubber Cup Head: Accommodates microcentrifuge tubes, 15ml tubes, and 50ml tubes securely.
Optional Accessory Heads: Flat head for microplates, foam head for multiple tubes, 3-prong head for various sizes.
Quiet Maintenance-Free Motor: Reliable operation with minimal noise for comfortable work environment.
4mm Orbit Diameter: Effective vortex action for thorough sample mixing.
Compact Benchtop Design: Small footprint saves valuable laboratory bench space.
Reagent Preparation: Essential for mixing buffers, solutions, and reagents thoroughly.
Cell Resuspension: Ideal for resuspending cell pellets after centrifugation.
Sample Homogenization: Perfect for mixing liquid samples before analysis.
Immunoassay Mixing: Suitable for mixing ELISA reagents and samples.
Molecular Biology: Excellent for mixing PCR reaction components.
Quality Control Testing: Ideal for sample preparation in QC applications.
