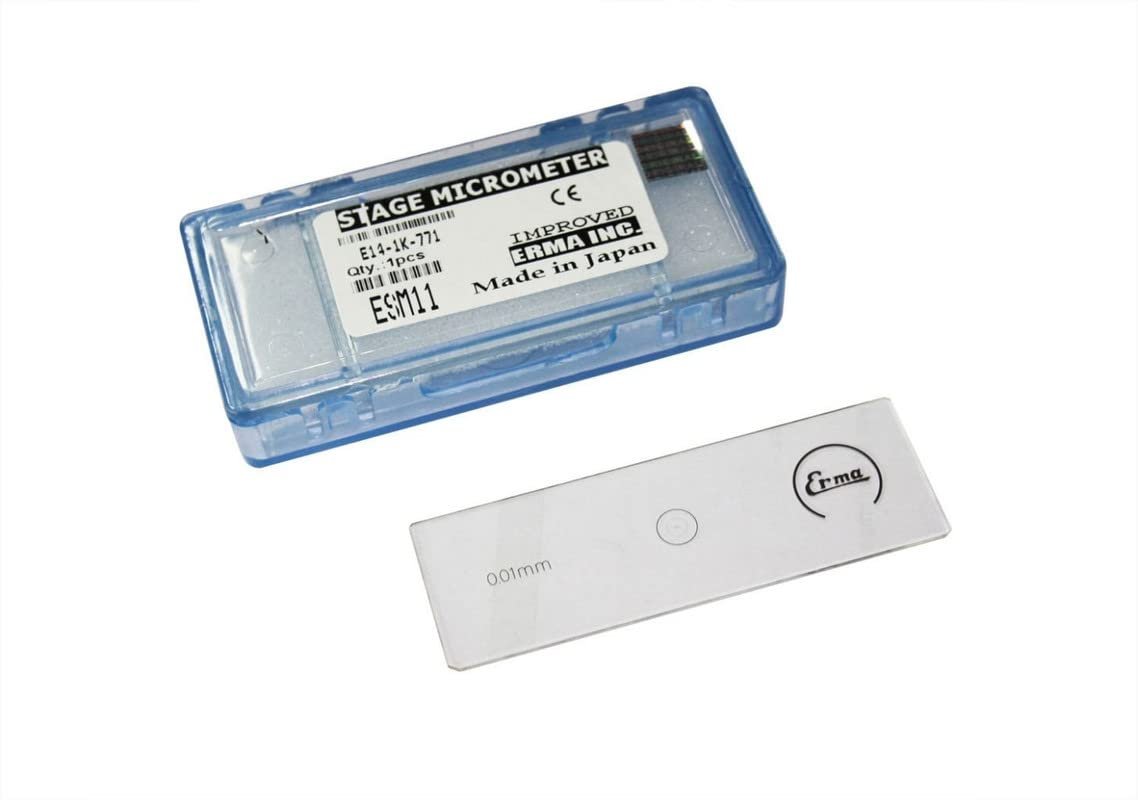

Stage Micrometer
Detailed Specifications: The stage micrometer is manufactured from high-quality optical glass. The slide dimensions are 75mm x 25mm x 1mm (standard microscope slide). The scale length is 1mm or 2mm depending on model. The scale is divided into 100 divisions (1mm scale) or 200 divisions (2mm scale). Each division is 10 μm (1mm scale) or 5 μm (2mm scale). The scale is precision-etched using photolithographic techniques. The scale accuracy is ±1 μm or better. The scale is clearly marked with major divisions every 10 divisions. The slide includes a protective cover for storage. The stage micrometer is compatible with all standard microscopes. The product includes an instruction sheet for calibration procedure. The stage micrometer is packaged in a protective case.
Stage Micrometer. The Stage Micrometer from Micron is a top rated calibration standard for measuring and calibrating microscope magnification and eyepiece reticles. This precision glass slide features a finely divided scale of known dimensions, typically 1mm divided into 100 divisions (10 μm per division) or 2mm divided into 200 divisions. The scale is precisely etched onto a standard 75x25mm glass slide. The stage micrometer is used to calibrate eyepiece reticles for accurate measurement of microscopic specimens. For microscopy laboratories seeking the best stage micrometer for microscope calibration, this product is an outstanding choice that ensures measurement accuracy.
One of the best features of this stage micrometer is its precision-etched scale and standard slide format. The scale is precisely etched onto optical glass using photolithographic techniques for high accuracy. The standard 75x25mm slide format fits all standard microscope stages. The scale is typically 1mm or 2mm in length, divided into 100 or 200 divisions (10 μm or 5 μm per division). The scale is clearly marked with major divisions for easy identification. The slide is supplied with a protective cover for storage. The stage micrometer is used with the eyepiece reticle to calibrate measurements. The scale is certified for accuracy. The slide is manufactured from high-quality optical glass for clarity. Its precision scale, standard format, and certified accuracy make it a top rated stage micrometer for microscope calibration.
Precision-Etched Scale: Photolithographic etching ensures high accuracy for reliable calibration.
1mm or 2mm Scale Length Options: Choose 1mm/100 divisions (10 μm) or 2mm/200 divisions (5 μm).
Standard 75x25mm Slide Format: Fits all standard microscope stages for universal compatibility.
±1 μm Scale Accuracy: Certified accuracy for confident microscope calibration.
Clear Major Division Markings: Easy identification of scale positions during calibration.
High-Quality Optical Glass: Clear, scratch-resistant glass for long-term use.
Protective Storage Case: Protects precision scale when not in use.
Complete Calibration Instructions: Included procedure for eyepiece reticle calibration.
Microscope Calibration: Essential for calibrating eyepiece reticles for accurate specimen measurement.
Quality Control Microscopy: Ideal for verifying microscope magnification accuracy in QC settings.
Research Microscopy: Perfect for calibrating measurement systems in research applications.
Teaching Laboratories: Excellent for demonstrating measurement calibration to students.
Metallurgical Microscopy: Suitable for calibrating measurements of metal grain size and features.
Pathology Laboratories: Ideal for calibrating measurements of tissue structures and lesions.
