FEATURES:
• Rapid freezing with dual compressors.
• Seamless switching between trimming and sectioning.
• Adjustable cutting angle for precision.
• Frost-free encapsulated microtome assembly.
• Motorized feed Drive
• UV sterilization
• Automatic and time controlled defrosting
• Blade Holder for finger safety
• Enclosed drainage system
• Section Counter
• User friendly control panel
• LCD screen which display data such as section thickness, temperature & other parameters
SPECIFICATIONS
• Section Thickness Range: 1 – 60µm
• Increment Range (I):
– 1 – 10µm in 1µm increments
– 10 – 20µm in 2µm increments
– 20 – 60µm in 5µm increments
• Trimming Thickness Range: 10 – 300µm in 10µm increments
• Maximum Specimen Size: 35 x 35 mm
• Horizontal Specimen Feed: 25mm
• Vertical Specimen Stroke: 65mm
• Motorized Coarse Feed: 300 & 900 µm/sec.
• Specimen Orientation: 8° (X.Y axis)
• Specimen Retraction: 5-75µm in 5µm increments
• Cryo Chamber Temp.: -1 to -30°C Adjustable
• Cooling Downtime to -35°C: 90 mins.
• Quick Freeze Shelf: -40°C

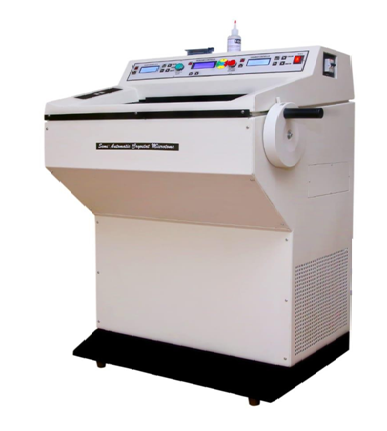

Elevate your cryosectioning experience with our Fully Automatic Cryostat Microtome, delivering exceptional performance in low-temperature environments. The Fully Automatic Cryostat Microtome Model MCM-AT from Micron is a top rated instrument that brings full automation to frozen sectioning. Its dual compressor system provides rapid freezing and stable temperature maintenance, while the motorized feed drive ensures consistent, reproducible sections every time. The frost-free encapsulated microtome assembly prevents ice buildup that can interfere with sectioning quality. For surgical pathology laboratories seeking the best cryostat for rapid, high-quality frozen sections, the MCM-AT is the definitive choice.
One of the best features of the MCM-AT is its comprehensive user interface and safety features. The LCD screen displays all critical data including section thickness, chamber temperature, and other parameters at a glance. The UV sterilization system helps maintain a clean chamber environment, reducing the risk of cross-contamination. The automatic and time-controlled defrosting system simplifies maintenance, while the enclosed drainage system makes cleaning quick and efficient. The blade holder is designed for finger safety, protecting technicians during blade changes. Its combination of automation, safety, and performance makes it a top rated cryostat for busy frozen section laboratories.
Standard Accessories:
• Minimum Freeze Shelf Temp: -50°C
• Chamber Defrosting: Manual or Automatic
• Number of Freezing Stations: 10
• Voltage/Frequency: 220V/60Hz
• Dimensions: 650 x 710 x 1280 mm
• Weight: 140 Kgs
Standard Accessories:
• Disposable blades 50 no.s: 1 pkt.
• Freezing medium 120ml: 1 bottle
• Object Holder: 10 no.s
• Brush: 1 no.s
• Set of Allen keys: 1 set.
• Operating Manual: 1 pc.
Dual Compressor Rapid Freezing System: Two CFC-free compressors provide rapid cooling to -35°C in just 90 minutes for immediate frozen sectioning.
Frost-Free Encapsulated Microtome: Enclosed microtome assembly prevents ice accumulation that can interfere with sectioning quality.
Motorized Feed Drive with UV Sterilization: Automatic feed system combined with UV germicidal lamp maintains chamber cleanliness and prevents contamination.
5.7-Inch Color LCD Display: Clear display shows section thickness, chamber temperature, section counter, and all operational parameters.
10 Freezing Stations with Quick Freeze Shelf: Multiple freezing positions including a -40°C quick freeze shelf for rapid specimen solidification.
Adjustable Specimen Retraction: Programmable retraction from 5-75µm in 5µm increments prevents blade damage and improves section quality.
Automatic and Manual Defrosting: Flexible defrosting options with time-controlled automatic cycles for convenient maintenance.
Finger-Safe Blade Holder: Specialized blade holder design protects technician fingers during blade changes and disposal.
Surgical Pathology Frozen Sections: Essential for intraoperative consultations requiring rapid frozen section diagnosis during surgery.
Intraoperative Margin Assessment: Ideal for evaluating surgical margins during tumor resection procedures.
Research and Pharmaceutical Labs: Perfect for frozen sectioning in preclinical studies and drug development research.
Neurology Research Laboratories: Suitable for fresh brain tissue sectioning for neurological research applications.
Enzyme Histochemistry Laboratories: Excellent for preserving enzyme activity through rapid frozen sectioning.
Immunofluorescence Studies: Ideal for frozen sectioning where antigen preservation is critical for antibody staining.
