Advanced Optical System
0-180 degree inclinable binocular for optimal viewing angle
Vario focal lens f’=200-400mm for adjustable working distance
5-step magnification changer (0.4X/0.6X/1.0X/1.6X/2.5X)
12.5X widefield eyepiece with adjustable eyecup
Superior Visualization
Enhanced total magnification range: 3.4X to 21.2X
Visual field range: 65mm to 10mm
80,000 Lux LED illumination with coaxial lighting
Premium Flexibility
Supporting arm with balance system for effortless positioning
Pantographic arm with 1040mm range
270 degree rotation angle
Height adjustment from 1000mm to 1350mm
Binoculars: 0-180 degree inclinable binocular
Vario focal lens: f’=200-400mm
Eyepiece: 12.5X, widefield with adjustable eyecup
Diopter adjustment: -7D to +7D
Magnification changer of 5 steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X
Total magnification: 3.4X, 5.4X, 8.5X, 13.5X, 21.2X
Visual field: 65mm to 10mm
Interpupillary distance: 55mm to 75mm
Coaxial illumination
Light source: Built-in LED bulb, 30W
Field of illumination: 70mm
Power supply: AC110V-220V 100W
Light intensity: 80,000 Lux
Filter: green
Supporting arm with balance
Pantographic arm with range of 1040mm
Rotation angle: 270 degree
Base size: 600mm
Height from objective to floor: Min.1000mm / Max.1350mm
Integrated Beamsplitter & adaptor: dismountable f’=65mm
HDMI/4K camera
Software available
Bracket for monitor
Monitor

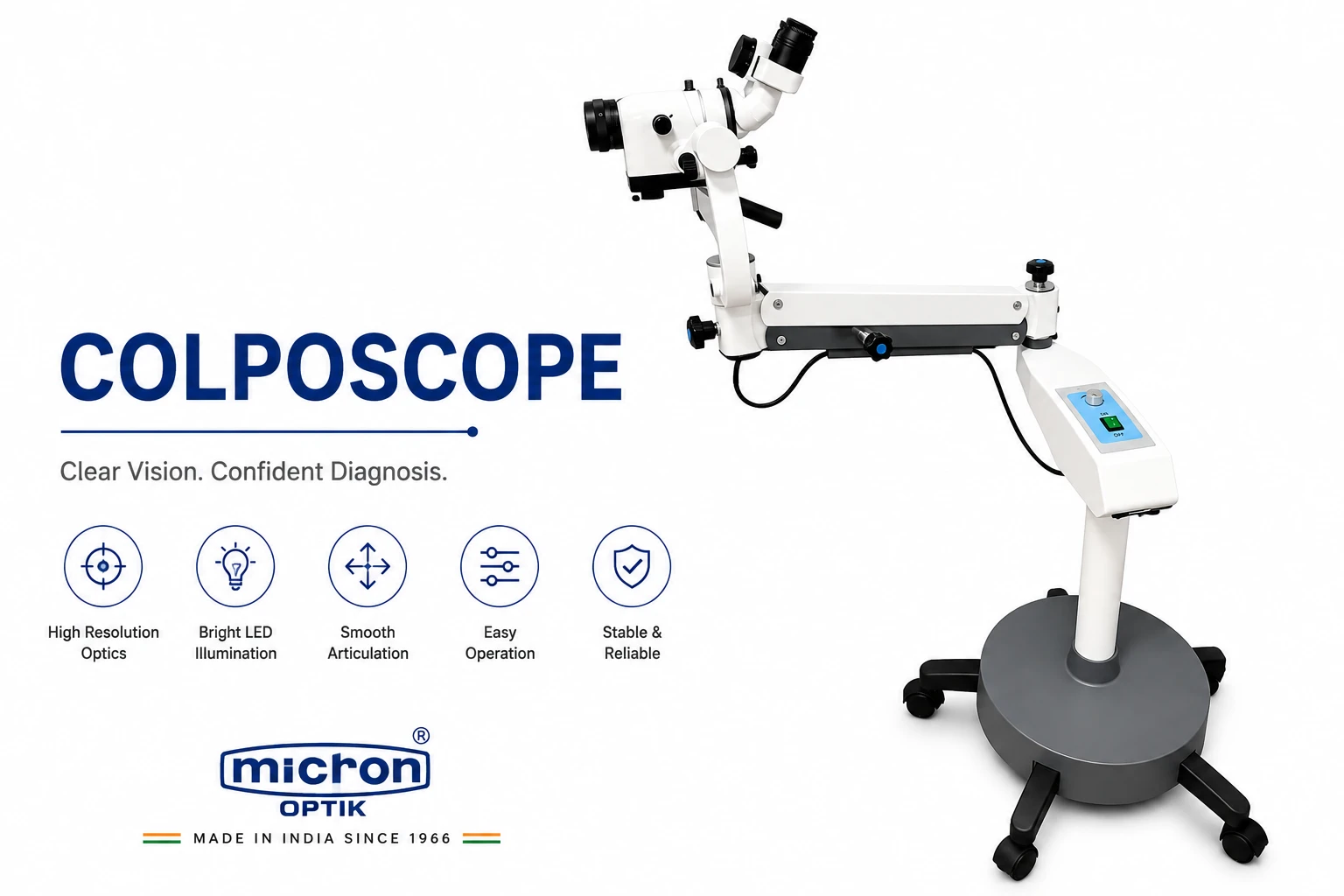

The Micron Optik Colposcope is a high-precision diagnostic instrument designed for detailed examination of the cervix, vagina, and external genital structures. It is widely used in gynecology for colposcopy procedures, cervical cancer screening, biopsy guidance, and evaluation of abnormal Pap smear findings. The system combines superior apochromatic optics, high-intensity LED illumination, ergonomic design, and stable positioning to deliver exceptional clarity, contrast, and diagnostic accuracy.
Colposcope Optical Head
5-Step Magnification Changer
Main Binocular Tube (Gynecological Ergonomic Type)
Wide-field Eyepieces
F=250 mm Objective
F=300 mm Objective
Coaxial LED Illumination System
Green Filter
Red Filter
Heavy-duty Mobile Floor Stand
Lockable High-stability Casters
Ergonomic Handgrips
Protective Cover
User Manual
Assistant Observation Tube
Beam Splitter
HD Digital Camera
4K Digital Camera
Medical-grade Surgical Monitor
Video Recording System
Image Management Software
Foot Control System
Additional Objective Lenses
Colposcopy for Cervical Cancer Screening
Evaluation of Abnormal Pap Smear Results
Cervical Biopsy Guidance
Detection of Cervical Dysplasia
Vaginal and Vulvar Examination
Follow-up of Treated Cervical Lesions
Gynecological Training & Education
